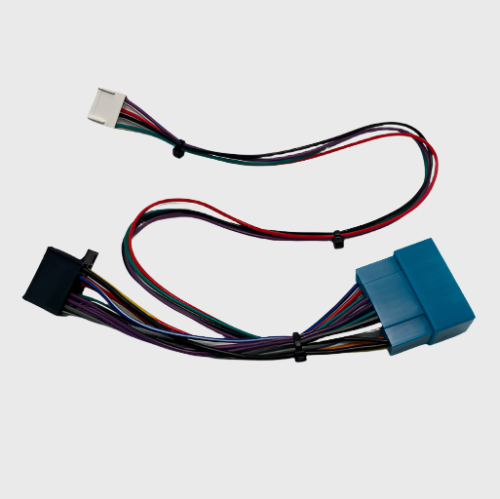

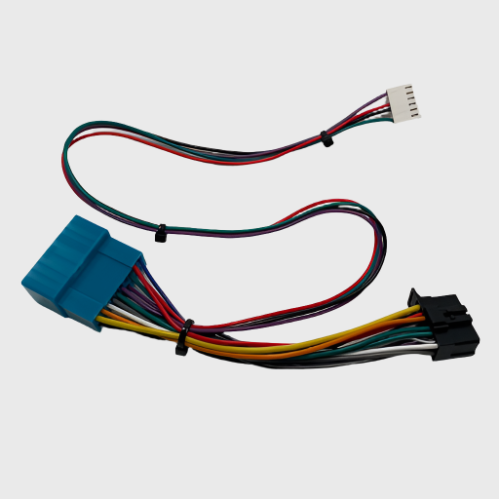

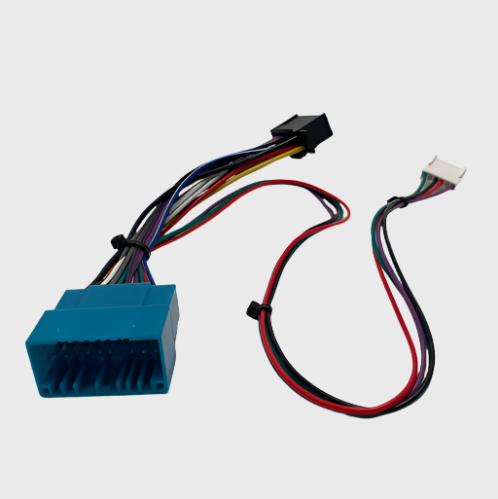

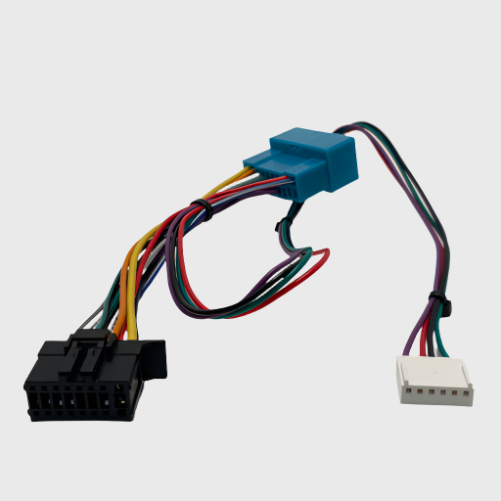

Pioneer Plug-n-Play Adapter Harness

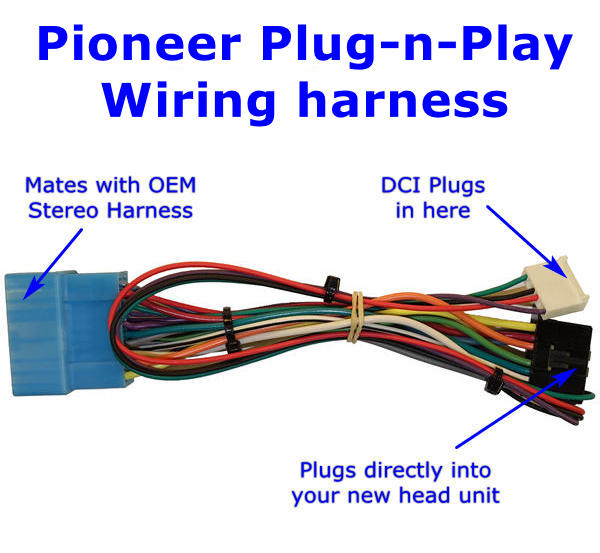

Easiest installation ever - this custom Plug-n-Play harness connects into the head unit, the car's stereo harness, and our DCI (Dash Control Interface) to simplify installation of a Pioneer head unit and DCI. This harness greatly reduces installation time and there are no worries about making the right wire connections.

• DCI (sold separately) is needed to convert S2000 dash control signals into head unit commands.
• Can be used without a DCI for a "no splice" installation of your new Pioneer head unit.
• Amp "turn-on" lead is wired to power the S2000 antenna but may be T-tapped for use with an external amplifier.
• Wires for special applications such as "neutral" or "reverse light" inputs are not included.

Only works on DCIs with a 6-pin connector (2012 or later). Also, will not work on "Stage 4" head units, as the connector is different than "standard" Pioneer models.
